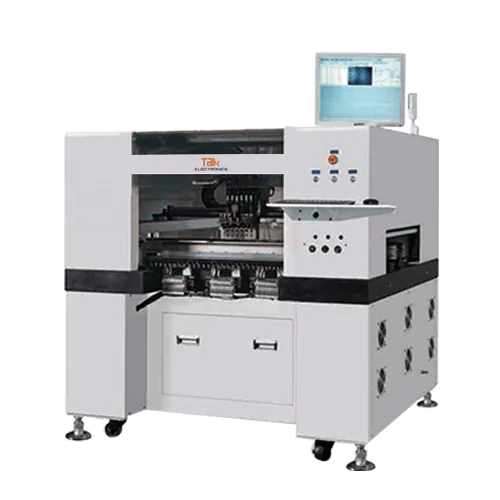

High-end Pick & Place Machine

Pick and Place Machine


 "Pick and Place Machine" is a piece of industrial equipment used in manufacturing, particularly in electronics assembly and printed circuit board (PCB) assembly processes. Its primary function is to automatically pick up electronic components (such as resistors, capacitors, integrated circuits, or LEDs) from a tray or reel and accurately place them onto a PCB with precision and speed.


Key Features and Functions of a Pick and Place Machine :

Component Pickup:

The machine uses a vacuum nozzle or other mechanisms to pick up individual electronic components from their packaging (e.g., trays, reels, or tubes).

Vision Systems:

Many modern pick and place machines are equipped with vision systems that help identify component positions on the PCB, ensuring accurate placement.


The machine places the components onto the PCB according to the programmed coordinates, orientation, and soldering requirements. It can handle small and delicate components with high precision.

High Speed:

Pick and place machines are capable of very high-speed operation, allowing for efficient mass production of electronic assemblies.


They are often programmable and can be reconfigured for different component sizes and shapes, making them versatile for various assembly tasks.


These machines offer high placement accuracy, reducing the risk of errors and improving the quality of the final product.


In some cases, pick and place machines can be integrated with soldering equipment to complete the assembly process.
